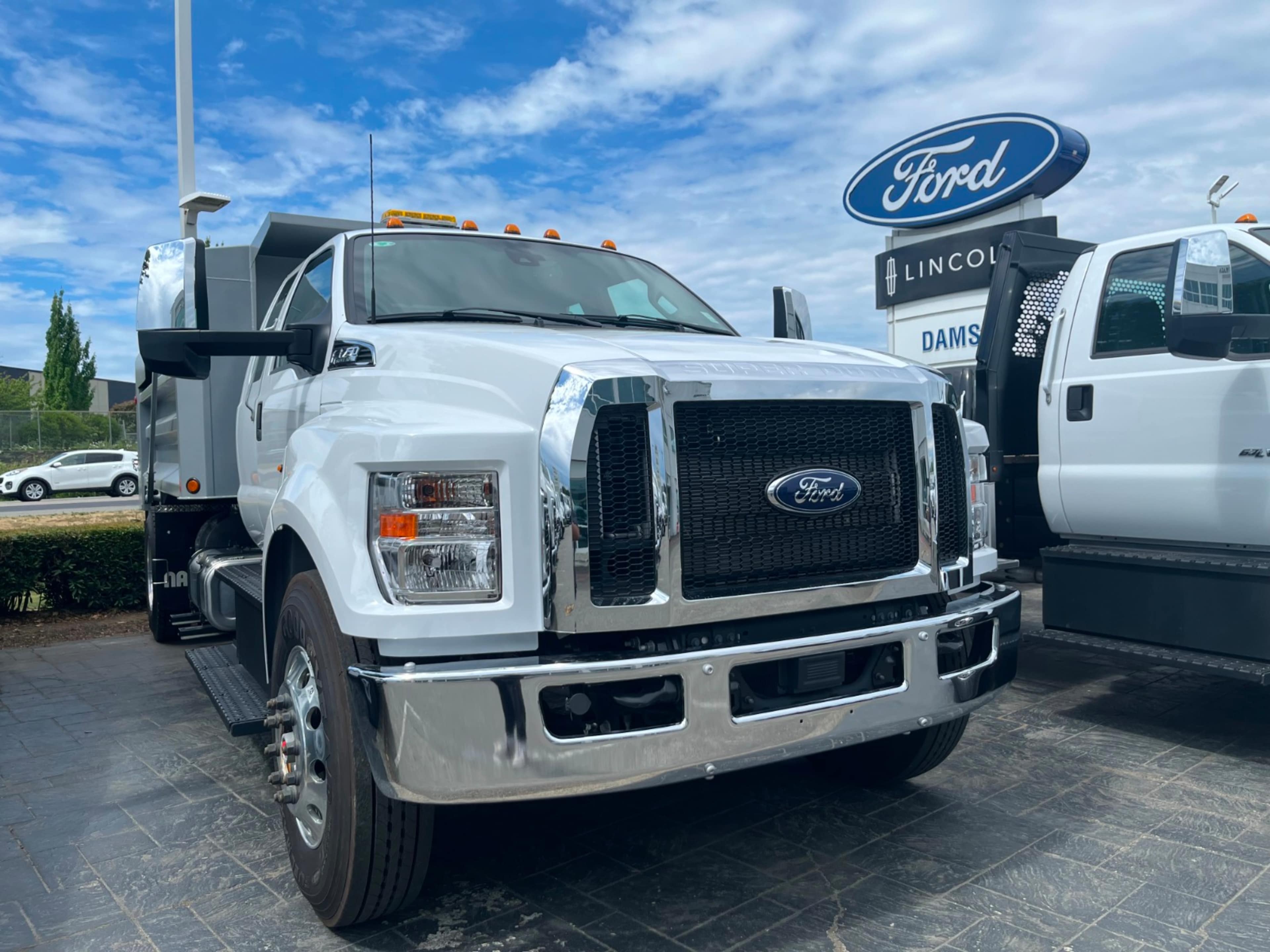

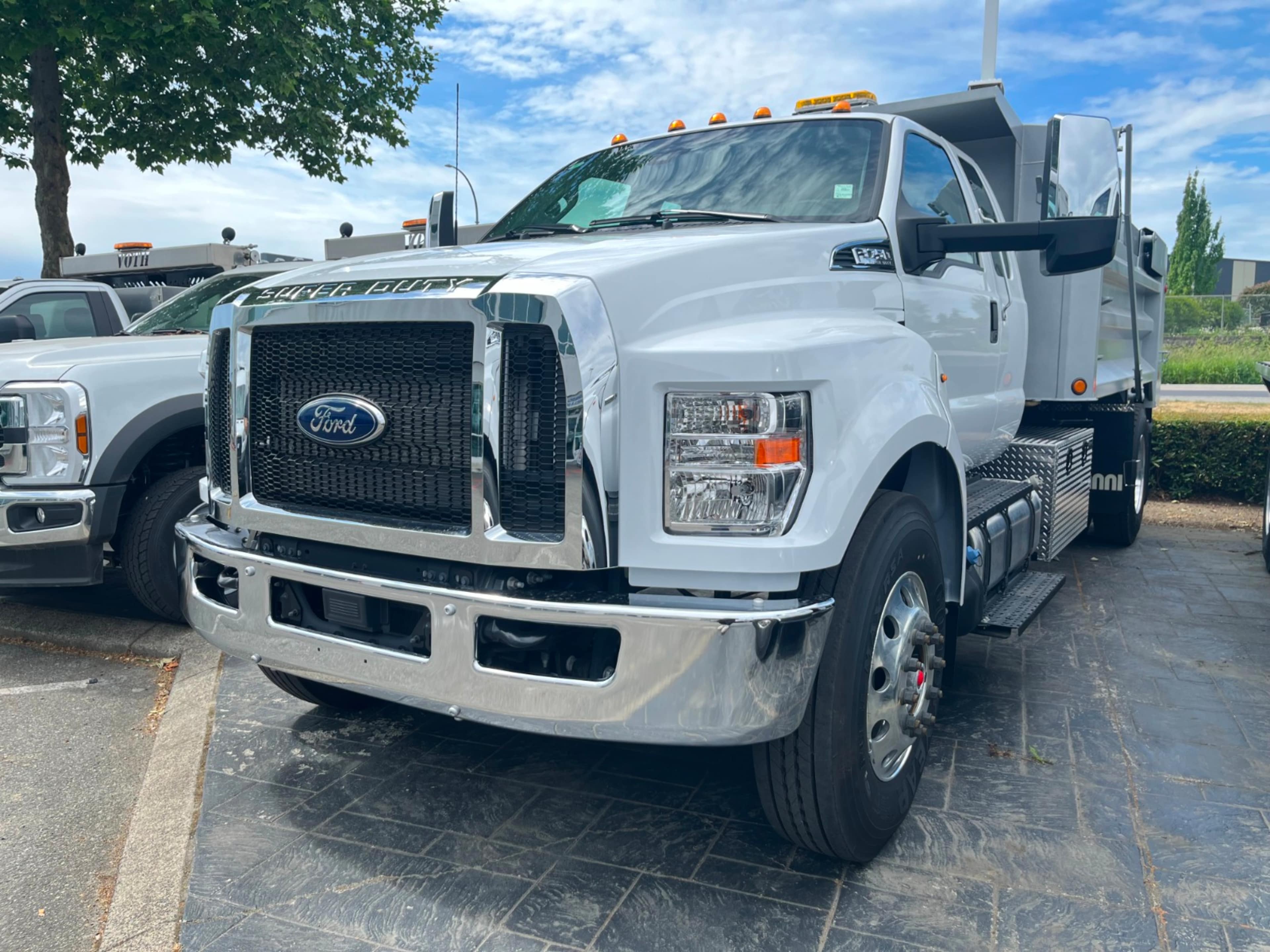

2026 Ford Super Duty F-750 Straight Frame

• Manual climate control
• Supplemental cabin heater
• Climate control
• Full vinyl floor covering
• Full floor coverage
• Vinyl front seat upholstery
• Carpet front seatback upholstery
• Front passenger seat armrest
• Driver seat armrest
• Bucket driver seat
• Folding driver seat back
• Low driver seat back
• Manual fore/aft
• Bucket passenger seat
• Fixed passenger seat back
• Low passenger seat back
• Manual fore/aft
• Urethane gear shifter material
• Light tinted windows
• Cloth headliner material
• Full headliner coverage
• Chrome interior accents
• Split-bench rear seat
• Fold-up rear seat cushion
• 60-40 folding rear seats
• Fixed rear seats
• 5-Passenger Seating
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Urethane steering wheel
• Vinyl rear seat upholstery
• Carpetrear seatback upholstery

• Steering wheel mounted audio controls
• Partial floor console
• Mini overhead console
• Overhead console storage
• Cruise control with steering wheel mounted controls
• Mechanical
• Auto-locking doors
• Power door locks with 2 stage unlocking
• Keyfob keyless entry
• Heated driver and passenger side door mirrors
• Power door mirrors
• Manual folding door mirrors
• Tachometer
• Oil pressure gauge
• Engine/electric motor temperature gauge
• Voltmeter
• Oil temperature gauge
• Transmission fluid temperature gauge
• Engine hour metre
• Diesel exhaust fluid (def) gauge
• Digital clock
• Redundant digital speedometer
• Battery charge warning
• Low level warning for fuel, brake fluid and diesel exhaust fluid (DEF)
• Key in vehicle warning
• Door ajar warning
• Service interval indicator
• Oil pressure warning
• Transmission fluid temp warning
• Driver information centre
• Headlights on reminder
• Trip odometer
• Front reading lights
• Variable instrument panel light
• Upfitter switches
• Trip computer
• Dual electric horn
• Steering column lever gearshift location
• Primary air pressure gauge
• Reverse opening left rear passenger door
• Reverse opening right rear passenger door
• Driver foot rest
• 2 12V power outlets
• Front facing rear seat
• Fixed rear windshield
• Front beverage holders
• Standard glove box
• 4 beverage holders
• Driver and passenger door bins
• Passenger visor mirror
• Power first-row windows
• Fixed second-row windows
• Driver and passenger one-touch down windows
• Driver and passenger one-touch up windows
• Variable intermittent front windshield wipers
• Speed sensitive wipers

• Composite/galvanized steel body panels
• 2 front tow hooks
• Black front bumper
• Straight front bumper ends
• Side assist steps
• Front splash guards
• Rear splash guards
• 4 doors
• Black grille
• Hood mounted grille
• Trailer style side mirrors
• Chrome door mirrors
• Non-metallic paint
• Monotone paint
• English measure truck 279/82R22.5 AS BSW 497 RPM front and rear tires
• Trailer wiring harness
• Black side window trim
• Black door handles
• Black windshield trim
• 22.5 x 8.25-inch front and dual rear wheels
• Dual rear wheels
• Polished front wheels
• Aluminum front wheels
• Polished rear wheels
• Aluminum rear wheels

• Fixed audio antenna
• Wireless audio streaming
• 1 total number of 1st row displays
• AM/FM
• External memory control
• Seek scan
• Auxiliary input jack
• Standard grade speakers
• 4 speakers

• Heavy-duty alternator
• Three lead acid batteries
• Battery run down protection
• Battery location forward right
• Front and rear ventilated disk brakes
• Four channel ABS brakes
• Standard rear differential
• Rear-wheel drive
• Low-speed ABS traction control
• ICE
• 6.7L V-8 diesel direct injection, intercooled turbo, diesel, engine with 330HP
• 6.7L V-8
• Intercooled turbo
• Front mounted engine
• Compression ignition system
• Longitudinal mounted engine
• Iron engine block
• Aluminum cylinder head
• V8
• Engine block heater
• Radiator
• Engine retarder system
• Auxiliary power take-off
• Fuel/water separator
• Aluminized steel single exhaust
• Diesel
• Hydraulic power-assist steering system
• Re-circulating ball steering
• Standard ride suspension
• Rigid axle front suspension
• Leaf spring front suspension
• Front anti-roll bar
• Tapered leaf front suspension
• Gas-pressurized shock absorbers
• Rigid axle rear suspension
• Multi-leaf rear suspension
• Regular grade rear springs
• Leaf spring rear suspension
• 10-speed automatic
• Selectable mode transmission
• Transmission electronic control
• Sequential shift control
• Automatic
• Lock-up transmission
• 104.61 kmh speed limiter
• Overdrive transmission
• Transmission oil cooler
• PTO transmission provision

• Forward collision mitigation
• Lane departure warning
• Predictive brake assist system
• 4-wheel antilock (ABS) brakes
• Hydraulic disk brakes
• Rear mounted camera
• Auto high-beam headlights
• Reflector headlights
• Halogen headlights
• Auto on/off headlight control
• Delay-off headlights
• Multiple enclosed headlights
• DRL preference setting

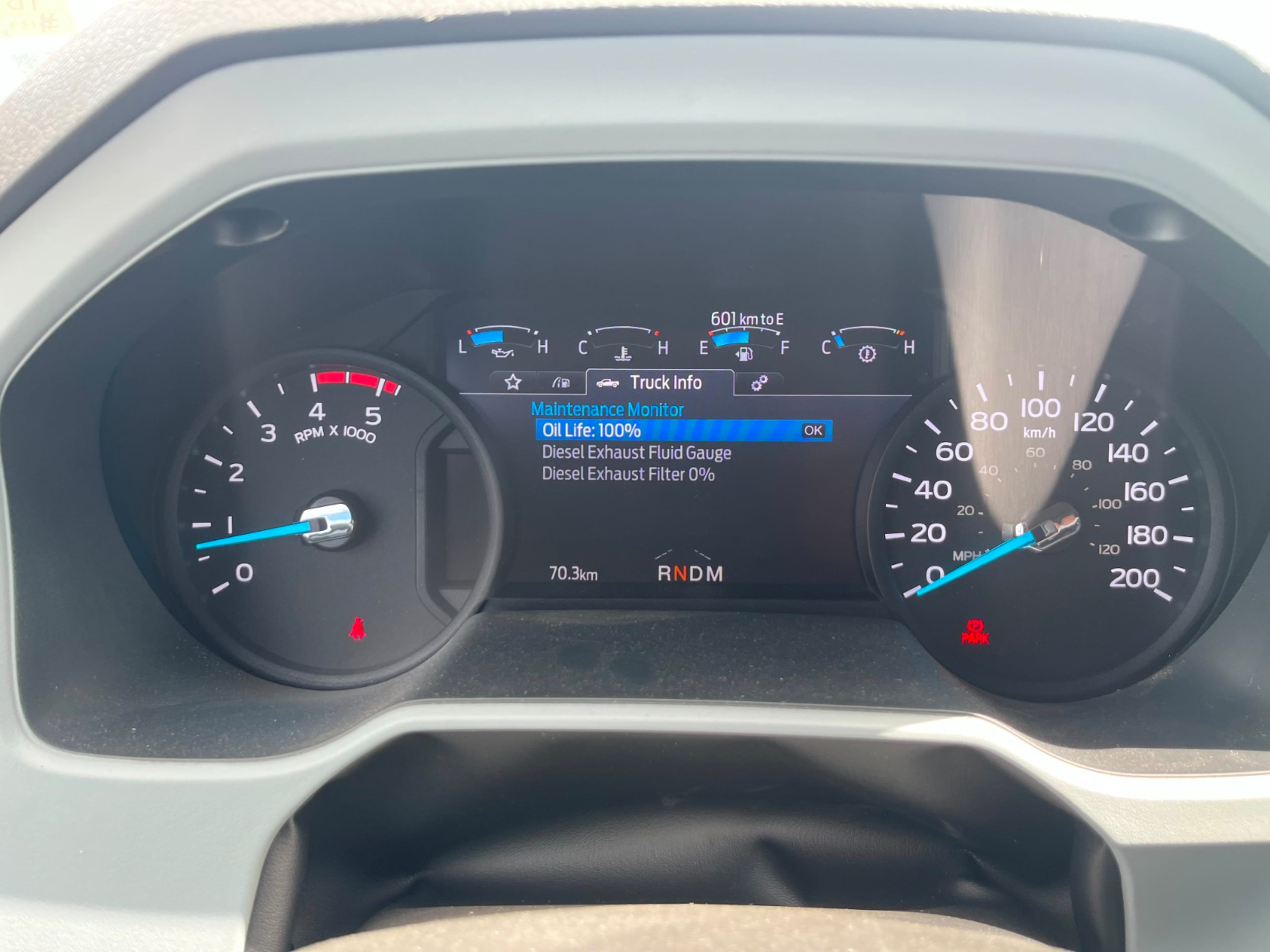

• Gauge cluster display size: 8.00
• Analog instrumentation display
• Daytime running lights
• Cab clearance lights
• Illuminated entry
• Delay interior courtesy lights
• Video-feed rearview mirror
• Driver and passenger convex spotter mirrors
• Back-up alarm
• Front height adjustable seatbelts
• Vehicle tracker
• Remote panic alarm
• Electronic stability control system
• Hill start assist

• Handsfree wireless device connectivity
• 1 USB port

Engine

Valves per cylinder

4

Engine Cylinders

8

Injection Type

Diesel direct injection

Engine specs

Displacement liters

6.7 L

Bore

3.9 "

Stroke

4.25 "

Compression ratio

16.2

Horsepower

330 HP

Governed speed

3400 RPM

Torque

1154 Nm

Displacement cubic inch

405.9 cu.in.

Compressor capacity

373.78 L

Air dryer

Air dryer

Alternator

Alternator Amps

240 A

Battery

Battery rating

2700 CCA

Battery step

Battery step

Transmission

First gear ratio

4.615

Second gear ratio

2.919

Third gear ratio

2.132

Fourth gear ratio

1.773

Fifth gear ratio

1.519

Sixth gear ratio

1.277

Reverse gear ratio

4.695

Seventh gear ratio

1

Eighth gear ratio

0.851

Ninth gear ratio

0.687

Tenth gear ratio

0.632

Stall ratio

1.97

Transmission Speeds

10

Tires

Front tire width

11.0 "

Front tire aspect ratio

82

Front tire diameter

22.5 "

Rear tire width

11.0 "

Rear tire aspect ratio

82

Rear tire diameter

22.5 "

Front tires LT load rating

H

Rear tires LT load rating

H

Drivetrain

Axle ratio

6.17

Axle speed

Single speed

Brakes

Front brake diameter

381 mm

Rear brake diameter

381 mm

Fuel

DEF capacity

30.28 litres

Climate control

Air Conditioning

Air Conditioning

Weights

Axle capacity front

5,443 kg

Axle capacity rear

9,525 kg

Spring rating front

5,443 kg

Tire/wheel capacity rear

10,895 kg

Maximum GVWR

16782.9 kg

Max RBM (in.-lbs.)

2,526,000

Nominal RBM (in.-lbs.)

2,413,200

turning radius (to bumper)

26.1 '

Front frame height loaded

35.3 "

Front frame height unloaded

37.3 "

Rear frame height loaded

36.5 "

Rear frame height unloaded

38 "

width - mirrors extended

121.9 "

width - mirrors folded

90.7 "

Trailering

Max gross combined weight rating

22,680 kg

Interior measurements

Leg room first-row

1051.6 mm

Leg room second-row

802.6 mm

Head room first-row

1033.8 mm

Head room second-row

967.7 mm

Hip room first-row

1717 mm

Hip room second-row

1709.4 mm

Shoulder room first-row

1727.2 mm

Shoulder room second-row

1729.7 mm

Exterior measurements

Driver distance from axle

1383 mm

Vehicle body length

6781.8 mm

Vehicle body width

2456.2 mm

Vehicle body height

2415.5 mm

Wheelbase

4546.6 mm

Curb to curb turning radius

7.5 m

Front track

2065 mm

Rear track

1849.1 mm

Fuel economy

Fuel economy fuel type

Diesel

Exhaust system

Additional muffler type

Horizontal

Additional muffler location

Right

Additional tailpipe type

Horizontal

Additional tailpipe location

Right

Suspension

Auxiliary rear spring

Rubber

Fuel tank

Front left fuel tank shape

Rectangular

Front left fuel tank capacity

246 litres

Front right fuel tank shape

Rectangular

Front right fuel tank capacity

189 litres

Wheels

Number of rear wheel studs

10

Number of front wheel studs

10

null

Cab to axle

2133.6 mm

Axle to end of frame

1244.6 mm

Frame section modulus

329.6 cm^3

Frame yield strength (psi)

120000

Frame rail depth

263.5 mm

Frame rail width

94.1 mm

Frame rail thickness

11.1 mm

Front bumper to front axle

990.6 mm
