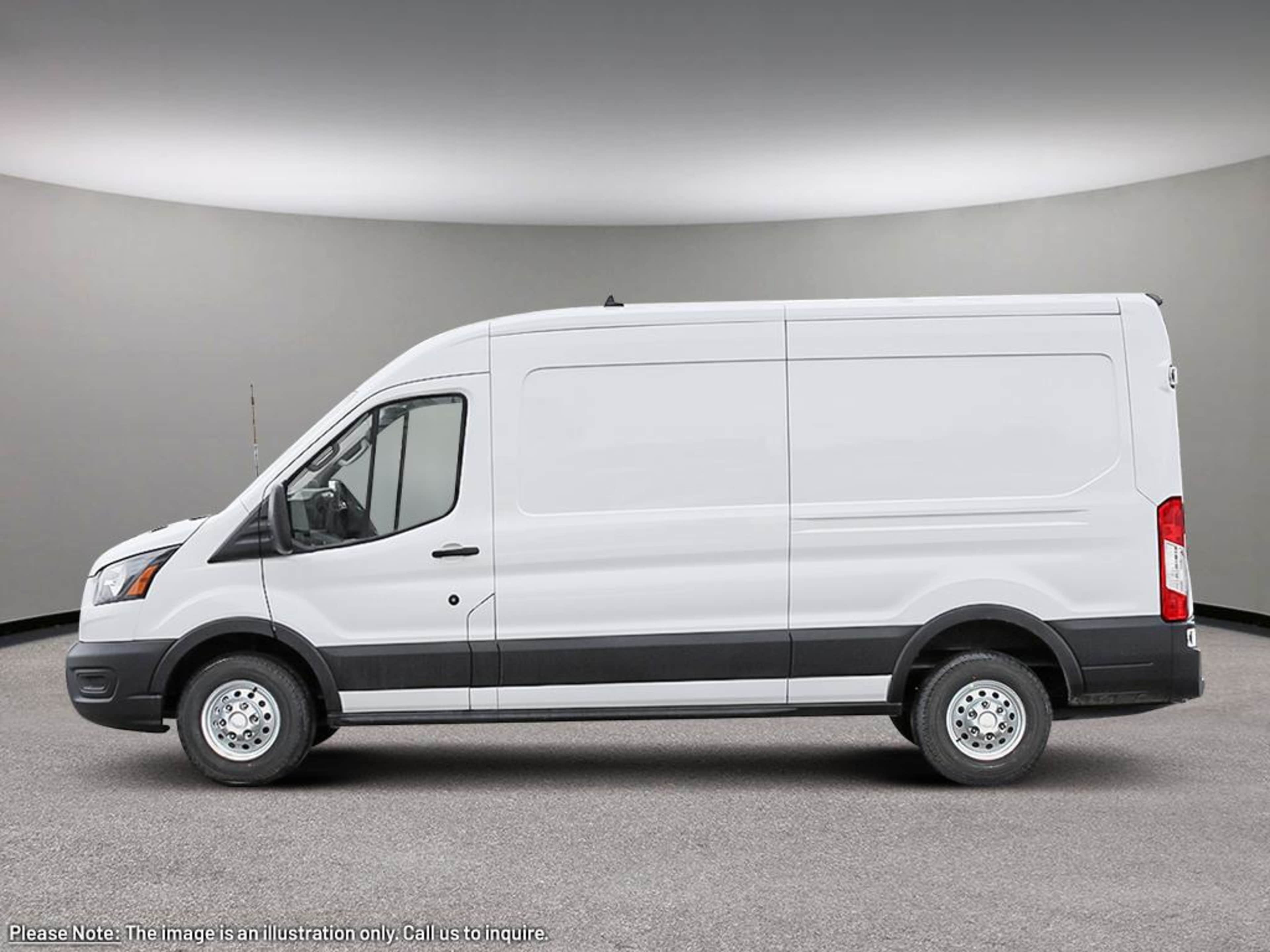

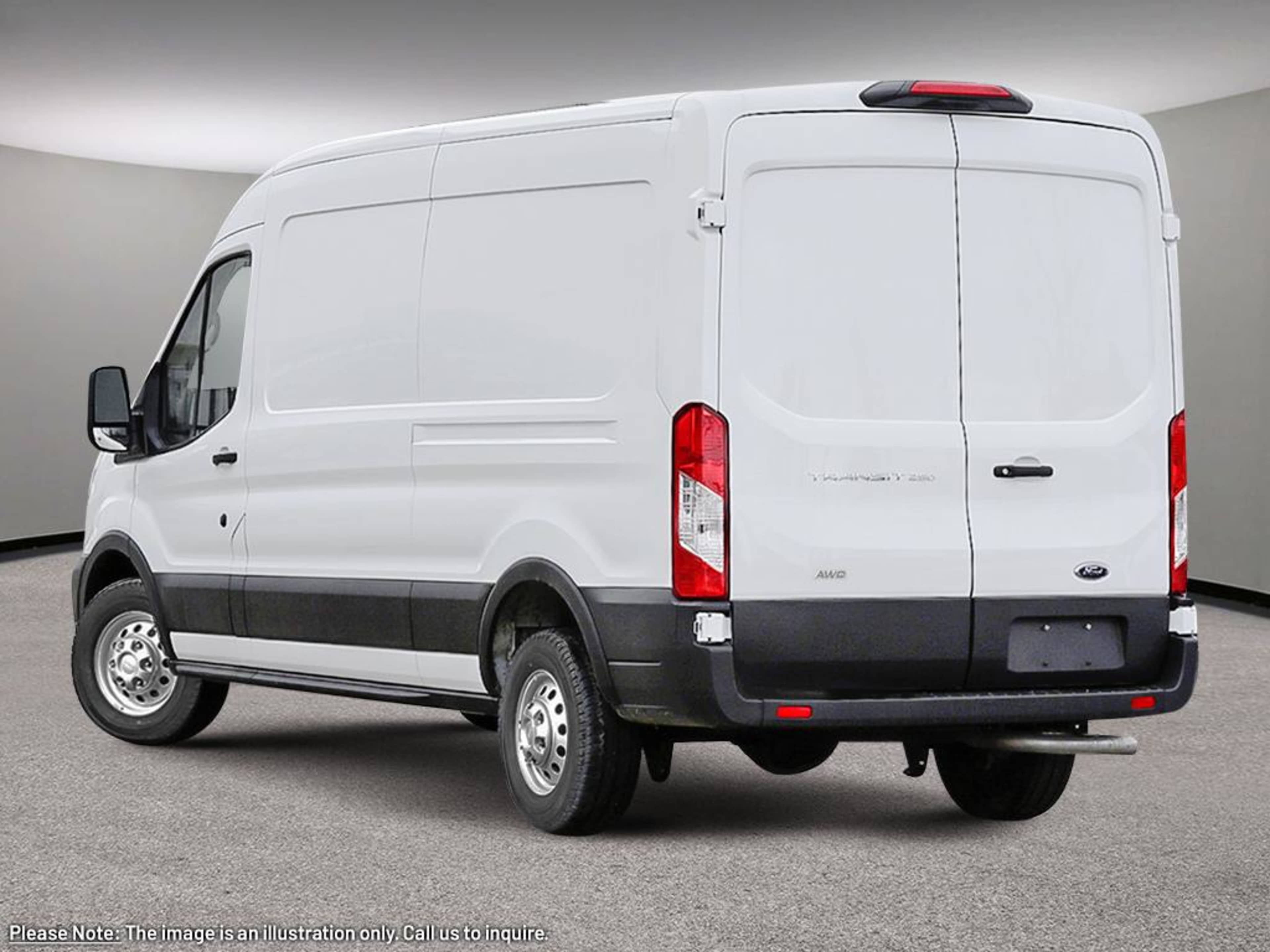

2026 Ford Transit Cargo Van

• Voice-activated climate control
• Manual climate control
• Climate control
• Full vinyl floor covering
• Full floor coverage
• Vinyl front seat upholstery
• Vinyl front seatback upholstery
• Bucket front seats
• Driver seat with 4-way directional controls
• Front passenger seat with 4-way directional controls
• Driver seat manual reclining, lumbar support and fore/aft control
• Passenger seat manual reclining and fore/aft control
• Height adjustable front seat head restraints
• Manual front seat head restraint control
• Urethane gear shifter material
• Light tinted windows
• Laminated side window glass
• Cloth headliner material
• Front headliner coverage
• Metal-look instrument panel insert
• Manual driver seat lumbar
• 2-Passenger Seating
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Urethane steering wheel

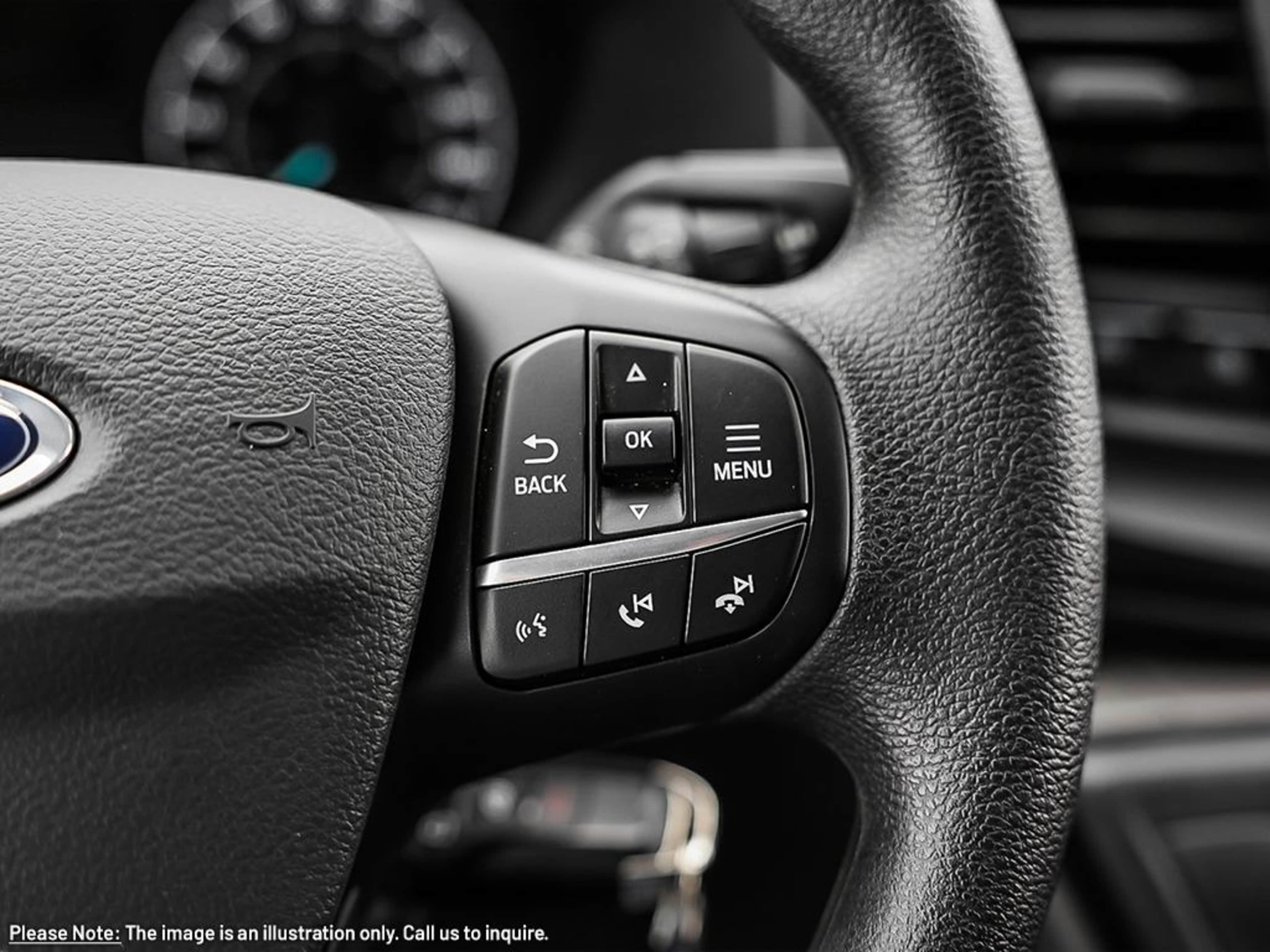

• Steering wheel mounted audio controls
• Cargo area tie downs
• Cargo area light
• Vinyl/rubber cargo area floor
• Partial floor console
• Floor console storage
• Cruise control with steering wheel mounted controls
• Push-button
• Smart key with push button start
• Auto-locking doors
• All-in-one remote fob and ignition key
• Power door locks with 2 stage unlocking
• Keyfob keyless entry
• Tailgate/power door lock
• Power door mirrors
• Manual folding door mirrors
• Capless fuel filler

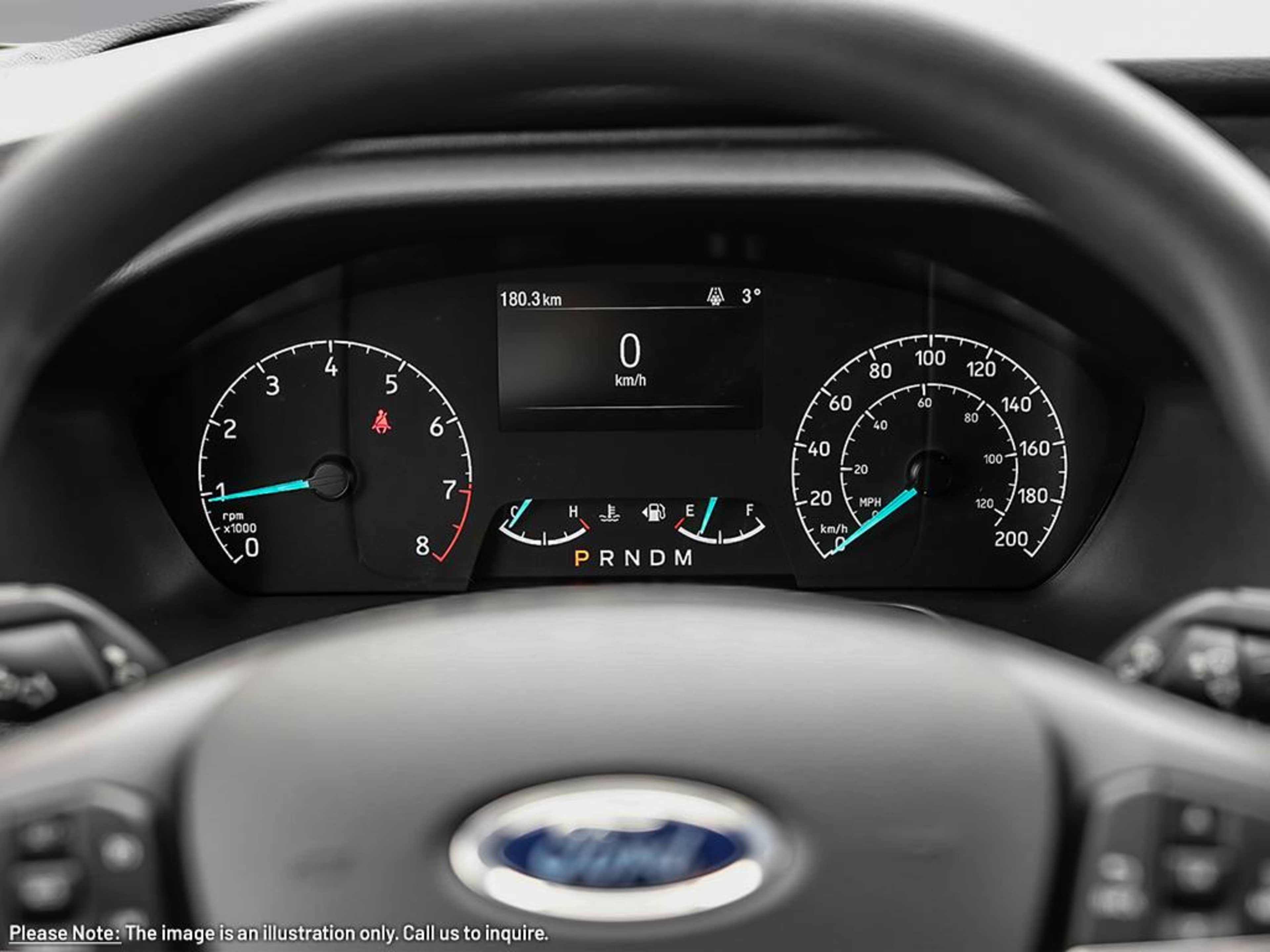

• Tachometer
• Engine/electric motor temperature gauge
• Digital clock
• Engine temperature warning
• Battery charge warning
• Low level warning for fuel and brake fluid
• Key in vehicle warning
• Rear cargo area ajar warning
• Service interval indicator
• Oil pressure warning
• Driver information centre
• Headlights on reminder
• Trip odometer

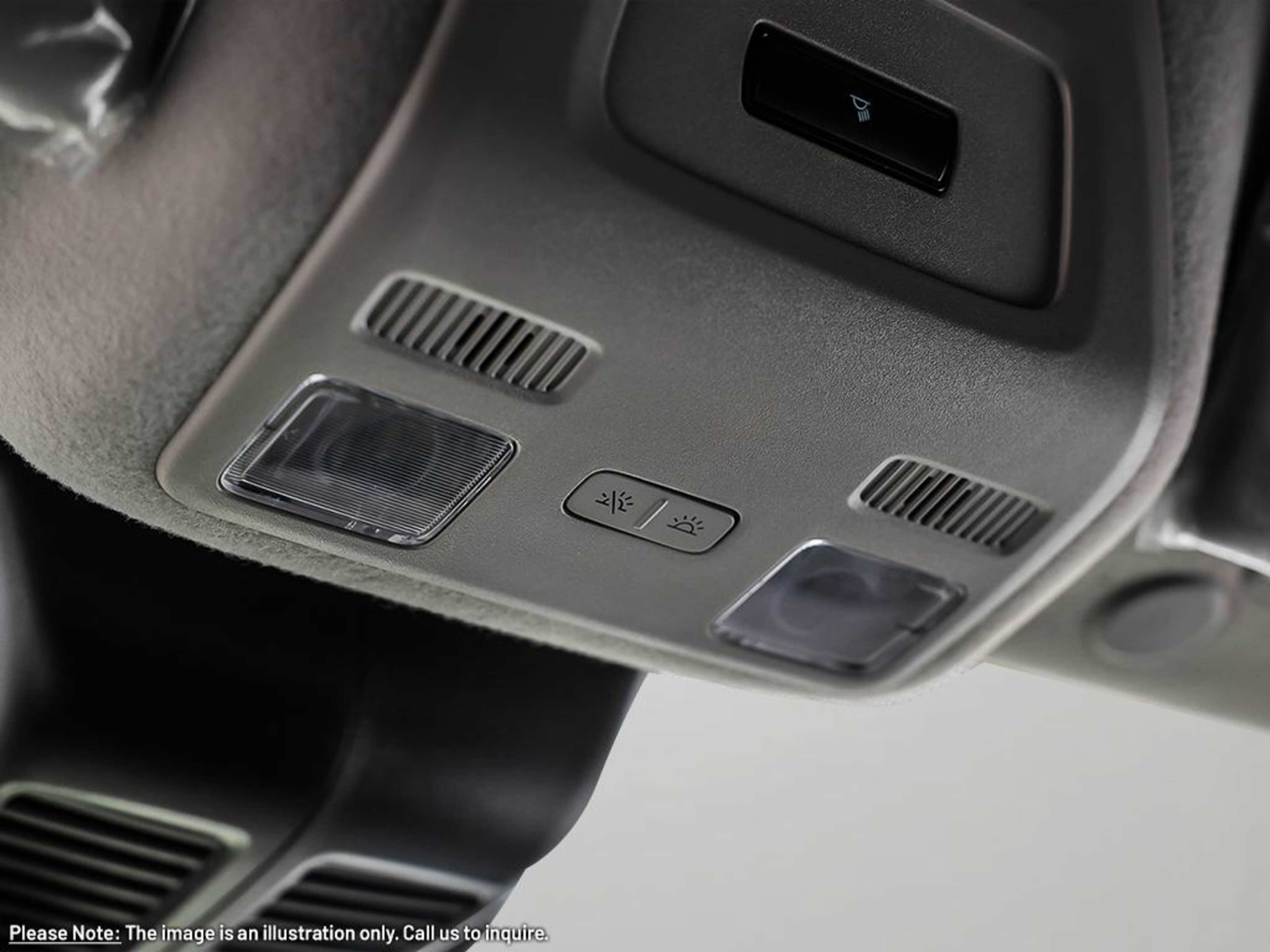

• Front reading lights
• Variable instrument panel light
• Over the air updates
• Sliding right rear passenger door
• Driver foot rest
• 3 12V power outlets
• Split swing-out rear cargo door
• Front beverage holders
• Locking glove box
• Driver and passenger door bins
• Built-in virtual assistant
• Front windshield solar coating
• Power first-row windows
• Driver one-touch down window
• Variable intermittent front windshield wipers

• Fully galvanized steel body panels with side impact beams
• Black front bumper
• Black rear bumper
• Rear tow hook
• 3 doors
• Black grille
• Standard style side mirrors
• Black door mirrors
• Non-metallic paint
• Monotone paint
• Full-size spare tire with steel wheel
• Crank-down spare tire
• LT235/65RR16 AS BSW 720 RPM front and rear tires
• Black bodyside cladding
• Black wheel well trim
• Black side window trim
• Black door handles
• Black windshield trim
• Wheel hub covers
• 16 x 6.5-inch front and rear silver steel wheels

• Fixed audio antenna
• Wireless audio streaming
• Voice activated audio controls
• Primary monitor touchscreen
• 1 total number of 1st row displays
• 12 inch primary display
• AM/FM
• External memory control
• Seek scan
• Auxiliary input jack
• Standard grade speakers
• 4 speakers

• Alternator
• Lead acid battery
• Battery run down protection
• Front ventilated disk brakes
• Four channel ABS brakes
• Electronic parking brake
• Automatic full-time AWD
• All-wheel drive
• All-speed ABS and driveline traction control
• Mechanical limited slip differential
• Permanent locking hub control
• ICE
• 3.5L V-6 port/direct injection, DOHC, variable valve control, regular unleaded, engine with 275HP
• 3.5L V-6 DOHC
• Front mounted engine
• Spark ignition system
• Longitudinal mounted engine
• Aluminum engine block
• Aluminum cylinder head
• V6
• Engine block heater
• Radiator
• Stainless steel single exhaust
• Regular Unleaded
• Electric power-assist steering system
• Rack-pinion steering
• Standard ride suspension
• Independent front suspension
• Strut front suspension
• Front anti-roll bar
• Front coil springs
• Rigid axle rear suspension
• Rear leaf springs
• Regular grade rear springs
• Leaf spring rear suspension
• 10-speed automatic
• Transmission electronic control

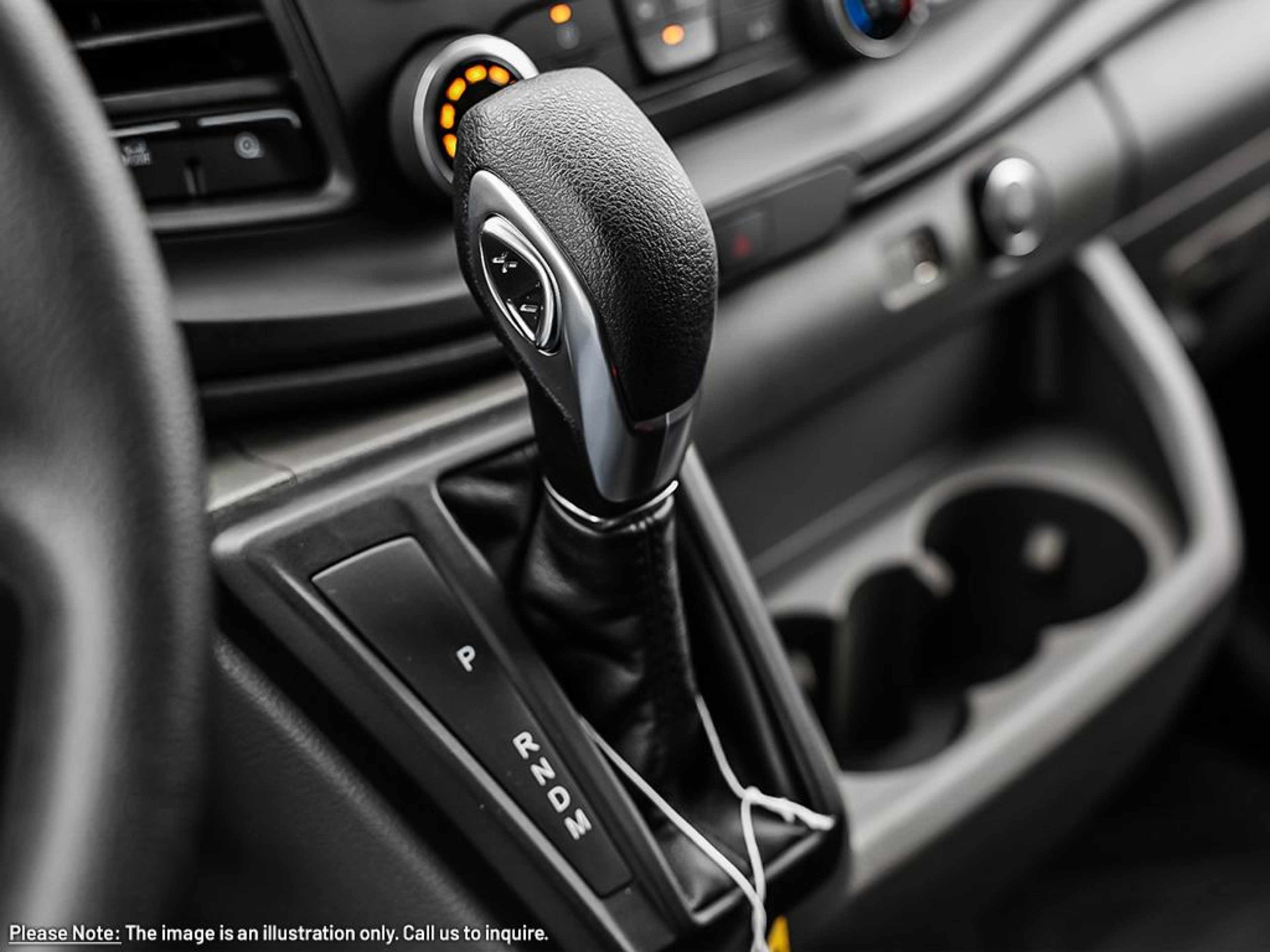

• Sequential shift control
• Automatic
• Lock-up transmission
• Overdrive transmission
• Transmission oil cooler

• Pedestrian impact prevention
• Lane departure prevention
• Forward collision mitigation with left turn assist
• Driver attention alert
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first-row overhead airbags
• Cancellable front passenger air bags
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• Brake assist system
• Automatic brake hold
• Automatic post-collision braking system
• 4-wheel disk brakes
• 4-wheel antilock (ABS) brakes
• Rear mounted camera
• Auto high-beam headlights
• Reflector headlights
• Halogen headlights
• Auto on/off headlight control
• Delay-off headlights
• Gauge cluster display size: 8.00
• Analog instrumentation display
• Low tire pressure warning
• Daytime running lights
• High mounted centre stop light
• Illuminated entry
• Fade interior courtesy lights
• Driver and passenger convex spotter mirrors
• Front and rear parking sensors
• Front height adjustable seatbelts
• Front seatbelt pretensioners
• 2 seatbelt pre-tensioners
• Immobilizer
• Remote panic alarm
• Electronic stability control system with anti-roll
• Hill start assist
• Rain detecting wipers

• Smart device wireless mirroring
• Handsfree wireless device connectivity
• Emergency SOS system via mobile device
• Mobile app access
• Mobile hotspot internet access
• 2 USB ports

Engine

Valves per cylinder

4

Engine Cylinders

6

Injection Type

Port/direct injection

Engine specs

Displacement liters

3.5 L

Bore

3.64 "

Stroke

3.41 "

Compression ratio

11.8

Horsepower

275 HP

Torque

353 Nm

Displacement cubic inch

213.4 cu.in.

Fuel

Alternate power/torque fuel type

E85

Fuel tank capacity

95.0 litres

Alternator

Alternator Amps

250 A

Battery

Battery Amps

70 Ah

Transmission

First gear ratio

4.689

Second gear ratio

2.985

Third gear ratio

2.146

Fourth gear ratio

1.769

Fifth gear ratio

1.52

Sixth gear ratio

1.275

Reverse gear ratio

4.866

Seventh gear ratio

1

Eighth gear ratio

0.854

Ninth gear ratio

0.689

Tenth gear ratio

0.636

Transmission Speeds

10

Tires

Front tire width

9.3 "

Front tire aspect ratio

65

Front tire diameter

16.0 "

Rear tire width

9.3 "

Rear tire aspect ratio

65

Rear tire diameter

16.0 "

Front tires LT load rating

C

Rear tires LT load rating

C

Drivetrain

Axle ratio

4.1

Brakes

Front brake diameter

307 mm

Rear brake diameter

307 mm

Climate control

Air Conditioning

Air Conditioning

Weights

GVWR

4,114 kg

GAWR front

2,100 kg

GAWR rear

2,502 kg

Standard curb weight

2468.4 kg

Standard payload

1645.2 kg

Trailering

Towing capacity

2,177 kg

Max gross combined weight rating

4,899 kg

Interior measurements

Leg room first-row

1049 mm

Head room first-row

1320.8 mm

Hip room first-row

1541.8 mm

Shoulder room first-row

1724.7 mm

Interior rear cargo volume

10112 L

Interior cargo area height

1828.8 mm

Interior cargo area min width

1391.9 mm

Interior cargo area max width

1783.1 mm

Interior cargo length

3650 mm

Exterior measurements

Vehicle body length

5981.7 mm

Vehicle body width

2065 mm

Vehicle body height

2573 mm

Side door opening height

1600.2 mm

Side door opening width

1300.5 mm

Rear door opening height

1648.5 mm

Rear door opening width

1567.2 mm

Wheelbase

3759.2 mm

Vehicle turning radius

7.29 m

Rear door opening angle

180

Front track

1732.3 mm

Rear track

1742.4 mm

Loading floor height

28.7 inches

Fuel economy (Alternate 1)

Alternate fuel economy fuel type

E85

Fuel economy

Fuel economy fuel type

Regular Unleaded

null

Front bumper to front axle

1023.6 mm
